15kg pelletên darîn vffs çenteyê ku makîneya çenteyê dagirtina dagirtinê pêk tîne

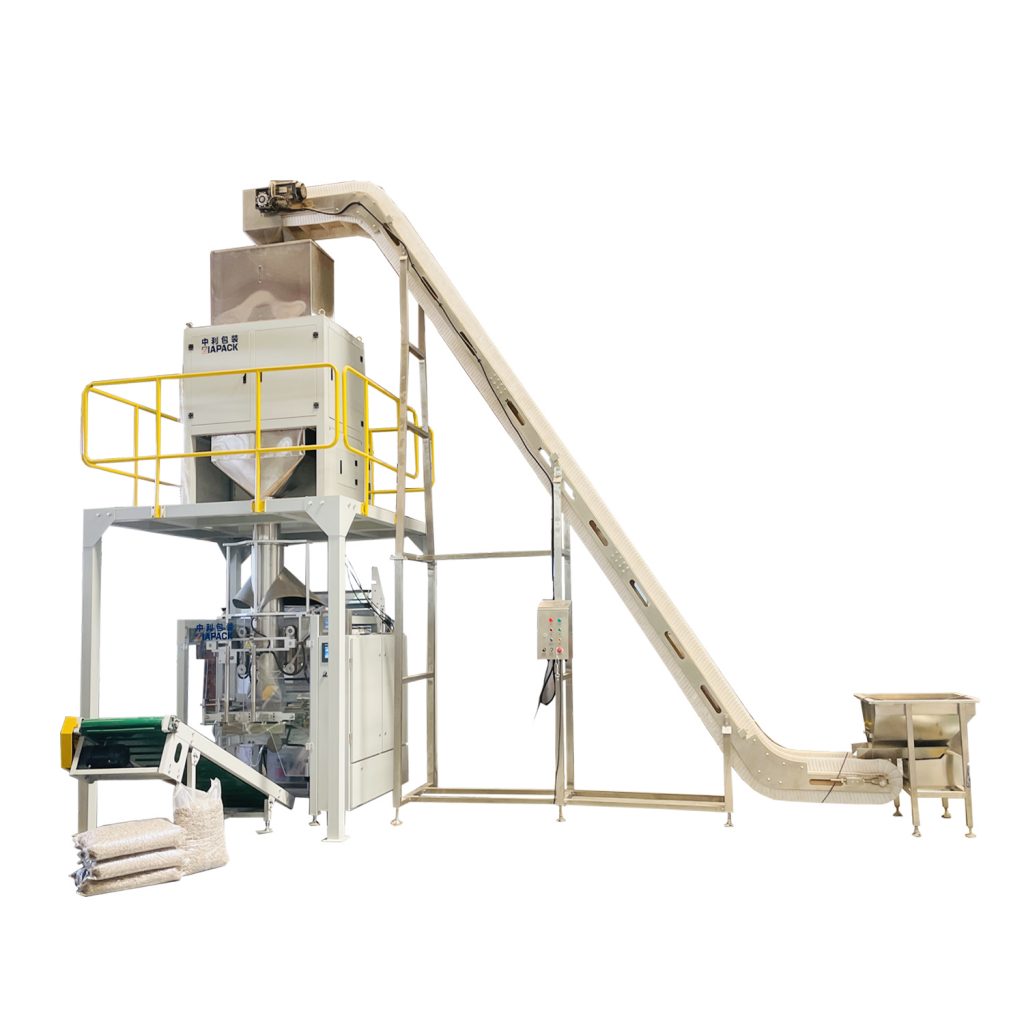

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Destpêk:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Parêzerên Teknîkî:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Pêdiviya hewaya pêçandî: 0,6Mpa 0,65m³/min

Reel outer diameter: 450mm

Dirêjahiya hundurê bingehîn: 75 mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Taybetmendî û Taybetmendiyên sereke:

• Rêjeyek berfireh a kulikan: Poçên Pillow û Gusset.
• Leza bilind: 20-50 çente/min
• Karê hêsan e: Kontrolkerê PLC û dîmendera desta rengîn, nîşana xeletiyê li ser ekrana destikê.
• Bi hêsanî bicîh bikin: tenê nêzîkî 10 deqîqeyan ji bo pouchesên cuda biguherînin.
• Kontrola Frequency: Bilez bi veguhertina veguherîna veguherînê di nav rêzê de tête kirin.
• Xweseriya Bilind: Di pêvajoyê de pêvajoyê û pêvajoya pakkirinê, nexşeya maka xwe bi xemgîniya xwe bi xeletî ye.
• Ewlehî û Tenduristî:
• No film, makîne dê alarm.
• Alarma makîneyê û dema rawestandina hewayê de bê rawestandin.
• Parêzerên Ewlekariya Ewlekariya Ewlekariyê, aloziya makîneyê û dema ku cerdevanan vekirî ve raweste raweste.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

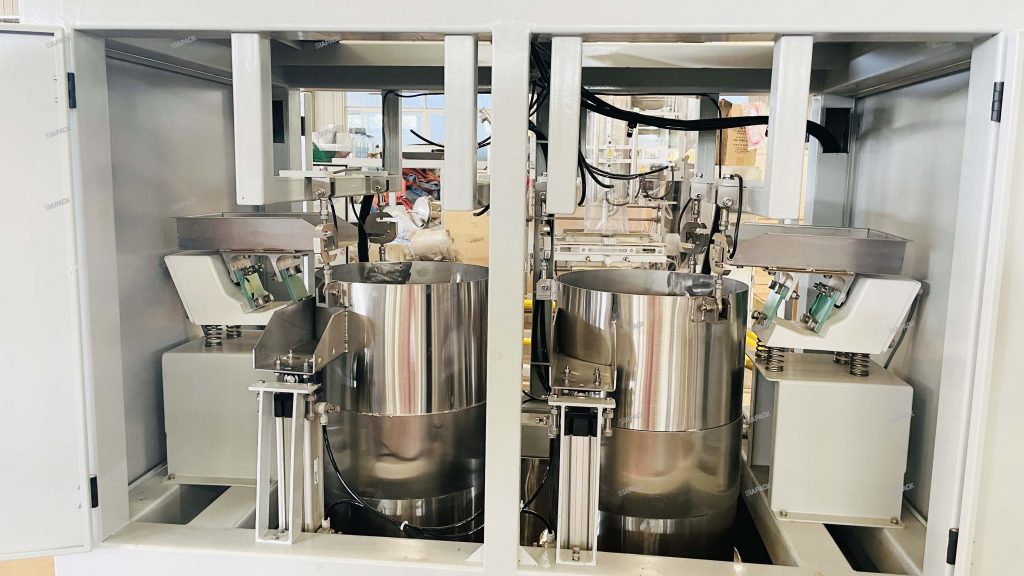

• ZLC2-15k double bucket weighing machine

  Destpêk:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Features:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
