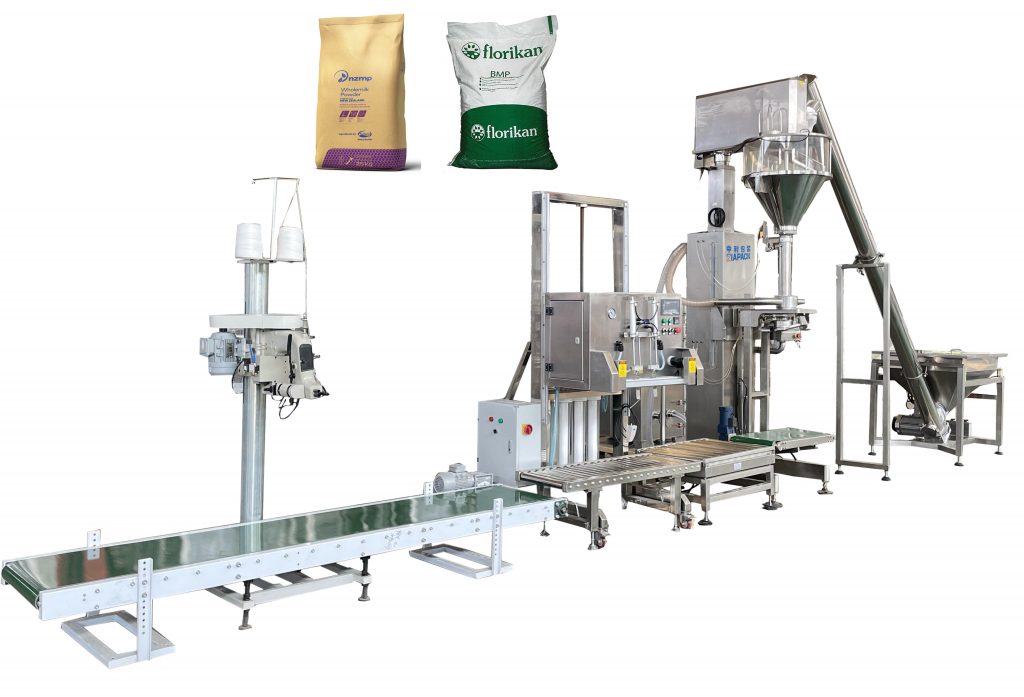

ZL100L Model Auger filling machine with online weigher
Ev model bi giranî ji bo toza xweşik a ku bi hêsanî tozê û hewcedariya pakkirinê ya bi rastbûna bilind dirijîne hatî çêkirin. Li ser bingeha nîşana vegerê ya ku ji hêla senzora giraniya jêrîn ve hatî dayîn, ev makîneyê pîvandinê, du-dagirtinê (Dagirtina zû û dagirtina rast) , û xebata jor-xwarê hwd dike. , û toza din a xweşik a ku hewceyê rastbûna pakkirinê ya bilind e.
Taybetmendiyên sereke
1, Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight. Featured with high speed and accuracy weighing system to guarantee the high packaging accuracy.
2, Servo motor control up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.
3, With servo motor and servo drive controlled auger, perform stably, and with high accuracy.
4, PLC control, touch screen display, easy to operate.
5, Made of stainless steel, combined hopper or split hopper, easily to be cleaned.
6, With hand wheel to adjust the height , easy to fill many kinds of weight.
7, With fixed screw installation, the material quality won’t be effected.
Pêvajoya Kar:
put bag/can(container) on the machine → container raise → fast filling,container declines → weight reaches the pre-setting number → slow filling → weight reaches the target weight → take the container away manually
Note:
1, the pneumatic bag-clamp equipment and can-hold set is optional ,they are suitable for can or bag filling separately.
2,Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
Daneyên teknîkî yên sereke
Packing Weight | 15kg-25kg |
Packing Accuracy | 15–20kg, ≤±0.2%, >20kg, ≤±0.05-0.1% |
Packing Speed | 1-2 car per min |
Navê min | 3P AC208 - 415V 50/60Hz |
Pargîdaniyê | 6kg/cm2 0.1m3/min |
Total Power | 3.62Kw |
Giraniya tevahî | 500kg |
Hemî Dimension | 1125×975×3230mm |
Hopper Volume | 100L |
