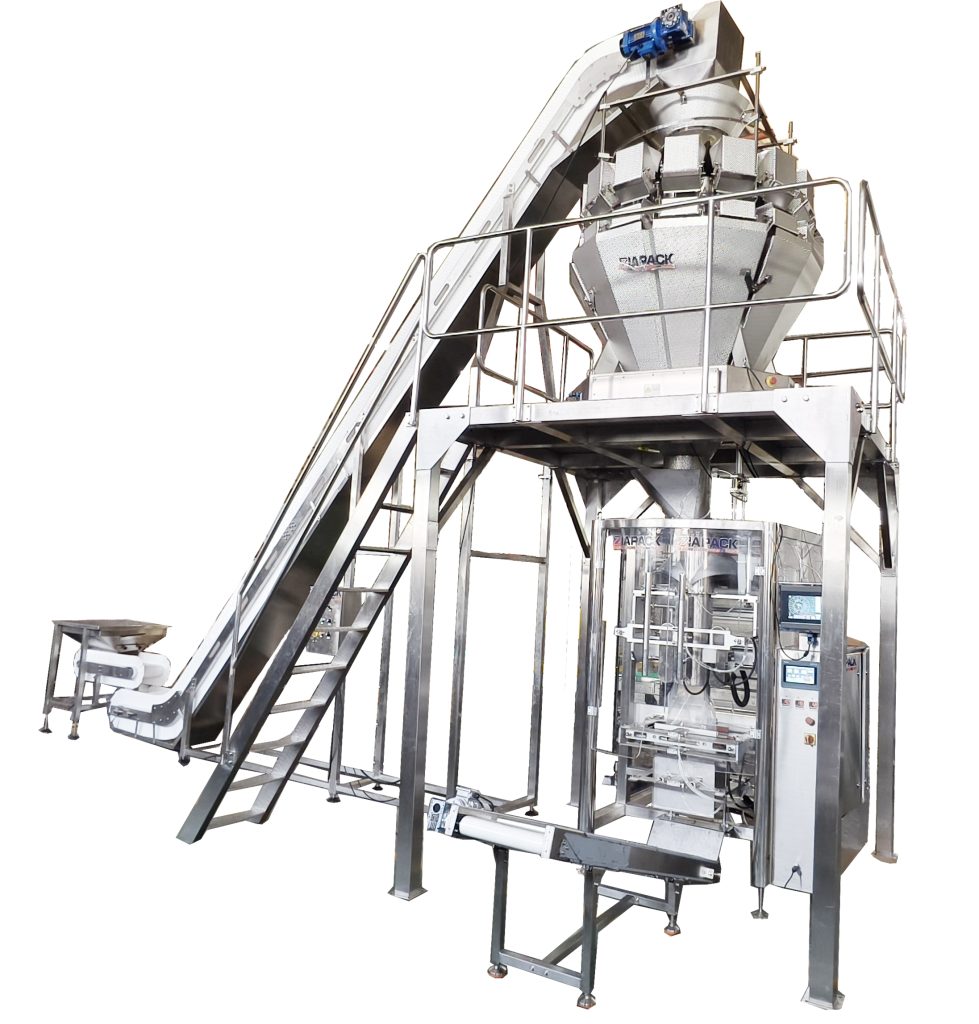

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Bikaranînî:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Features:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Destpêk:
Vê makîneyê dikare fonksiyonên çêkirina çenteyê, dagirtin, morkirin, çapkirin, birrîn, hwd. bixweber pêk bîne.
Ev makîneya pakkirinê ji bo xwarina fîlimê motora servo ya importê dipejirîne û pêwendiya mirov-makîne dîmendera pêwendiya pêşkeftî bikar tîne. Operasyon hêsantir û hêsantir e. Hemî pêkhate marqeya navdar a navneteweyî qebûl dikin, PLC SIEMENS e, motora servo PANASONIC e, ekrana desta SIEMENS e, silindir û valahiya hewayê SMC ye. parçeyên ku bi materyalê re têkildar in, kabîneya kontrolê, çarçoweya sereke ji pola zengarnegir têne çêkirin304
Parêzerên Teknîkî:
| Cins | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Dirêjahiya bagê | 150-480mm by secondary film pulling the bag length can be longer |
| Bag width | 120-375mm(Side width +front width ) |
| Width width | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Erk | 6KW 380V±10% 50Hz |
| Mezinahiya makîneyê | 1650*1500*1750mm |
| Giraniya makîneyê | 650kg |
