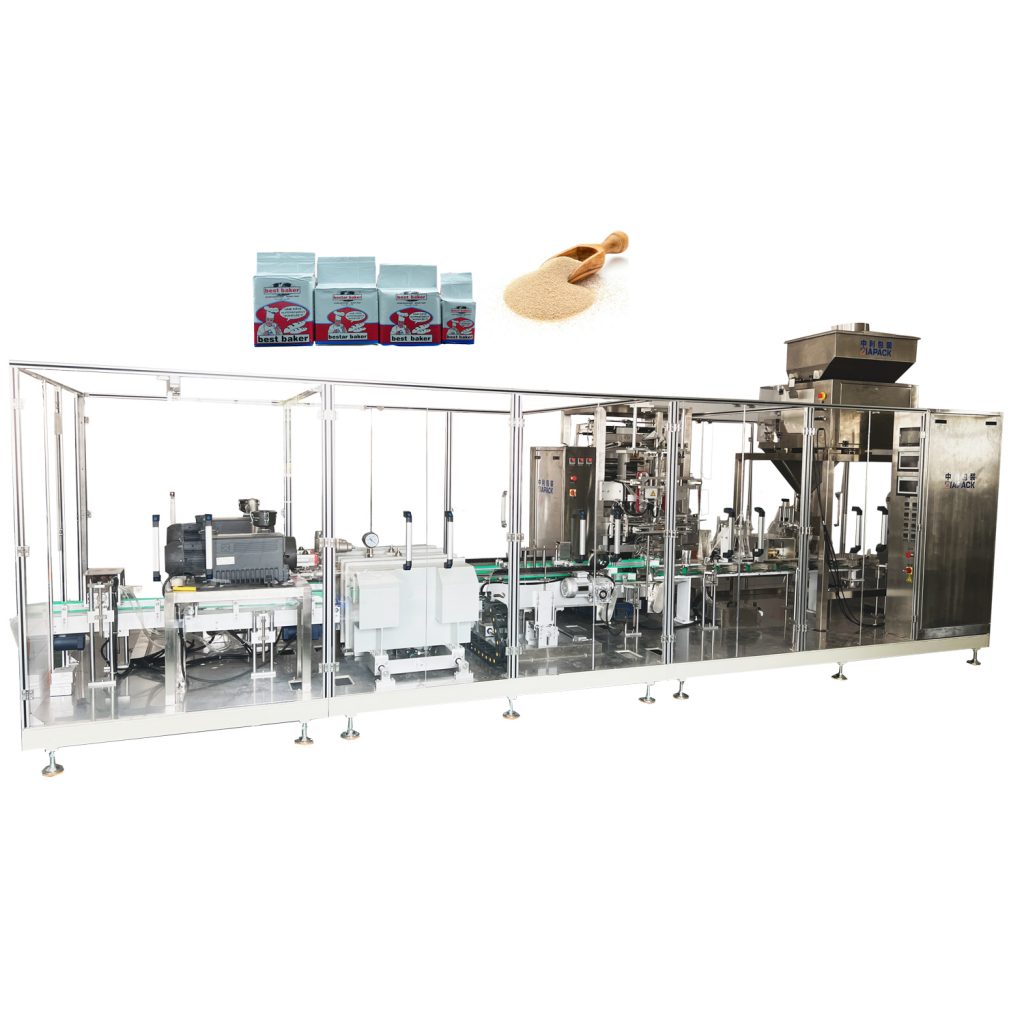

ZL100V2 automatic brick vacuum bag forming filling vacuuming sealing packaging machine
Introduction :
This machine including one set ZK3 vacuum elevator for feeding the dry yeast, one set ZL520 vertical bag making packing and sealing machine.one set ZLC4-2000 four buckets weighing machine, One set ZL-100V2 Double vacuum chamber packing machine. This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder, yeast powder wheat flour and so on .The whole machine adopting inside pumping to vacuum product. The vacuum degree is very high and packing speed is very high can be reach30bag/min .The finished product have a long shelf life and pretty shape .
Technical parameters :
Model :ZL-100V2(Double vacuum chambers )
Packing speed:70-100ramgram 25-35 bag/min
400-500gram 20-26 Bag /min
Bag dimension :Bag from width 60-180mm
Bag side width 35-75mm
Bag height 240mm(Different bag width need change the different bag former and bag carrying modules )
Machine dimension:6800*2200*2500mm
Power :26kw
Air supplier:8bar 0.8m3/min (1.5cmb air storage tank)
The whole machine made by Stainless Steel 304, This machine equipped with bag-making, cutting, code printing , etc. Siemens PLC and Touch Screen, Panasonic servo motor, Japanese Photo
Sensor, Korean Air valve, etc. The film pulling system adopted servo motor driving making speed faster. This machine is widely use for modern factory for packing different type product like powder ,granule and liquid .
Technical Parameters: Weighing Range: 100-500gram Packaging Speed:25-30 bags/min
Bag size: (80-360)*(80-250)mm(L*W) Compressed air requirement: 0.6Mpa 0.65m³/min Reel outer diameter: 400mm
Core inner diameter: 75mm
Machine weight: 800kg
Power source: 5.5kW 380V±10% 50Hz
YEKdvantage:
Machine fully controlled by Siemens or Omron PLC & Touch-Screen
Minute capacity can automatically display on Touch screen
Film transport system and horizontal Jaw motion both drived by Panasonic
Safe quick change of tube and collar by just pull out the bracket
Electrical photo sensor inducting color code to control bag length
Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting independent temperature adjustment.
Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PE PE/NYLON, aluminum foil based can be run on the machine.
The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipment
